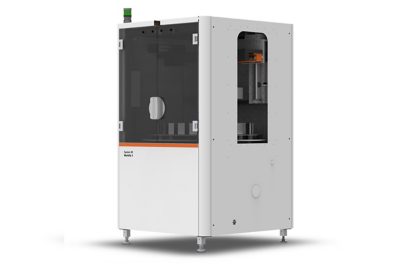

WorkPal 1: compact automatic pallet changer
Designed for automatic changing of pallets in chucks on machine tables in milling machine, wire EDM machine, laser machine or grinding machine.
Please accept all cookies to view the external content.
Automation made simple
With glass doors across one full side, the WorkPal 1 gives maximum access to the magazine. This greatly facilitates the loading and unloading of pallets.
Smallest footprint
WorkPal 1 is a pallet changer that requires minimal floor space.
Different applications
Wire-cutting EDM (wireEDM) application
Laser application
Milling application
Please accept all cookies to view the external content.
Flexible magazine configuration
12 positions
20 positions
60 positions
Several options available

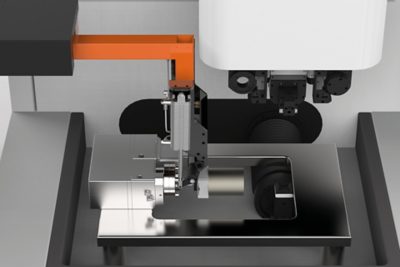

Tilt gripper for Wire-cutting EDM (wire EDM)

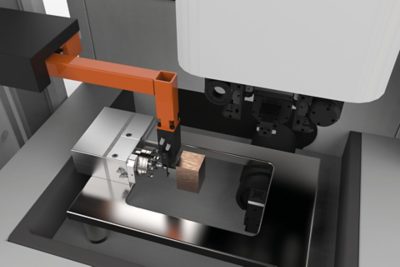

B-axis for Wire-cutting EDM (wire EDM)
The design allows loading of heavy work pieces with an overhead crane.
Magazine disc for Tilt gripper.
Technical specifications
No expensive machine modifications are required.
The changing arm lifts pallets over the tank in wire EDM machines.
Specifications
WorkPal 1
Magazine capacity/application
Pallet system
No of positions
| Magazine capacity/application | Pallet system | No of positions |
| Table chuck – milling, grinding or EDM | Macro 54 & 70 | 24, 40 or 60 |
| Macro with chip guard | 24 | |
| MacroPT | 60 | |
| Matrix 110 | 20 | |
| GPS 70 | 24, 40 or 60 | |
| GPS 120 | 20 | |
| Macro Ø 116 | 20 | |
| MacroMagnum | 6, 10 or 12 |
|
| Matrix 142 | 6, 10 or 12 | |
| GPS 240 | 7 | |
| Dynafix | 5 | |
| UPC (fork gripper or RCS) | 4 | |
| ITS 50 | 24, 40 or 60 | |
| ITS 148 | 6, 10 or 12 | |
| Table chuck - wire EDM | Macro WEDM | 12 |
| MacroTwin WEDM | 4 | |
| PSW (RDS gripper) | 12 | |
| Wire EDM B-axis | Macro 54 & 70 | 12, 24 or 40 |
| ITS 50 | 12, 24 or 40 |
Technical specifications
| Technical specifications | |
| Transfer weight (may be limited by the pallet system) | 50 kg (pallet with workpiece) 111 lbs (pallet with workpiece) |
| Maximum total weight in the magazine | 300 kg 667 lbs |
| MR, X and Z axes | AC servo motor |
| Maximum horizontal stroke (X) and speed | 828 mm, Speed 1200 mm/s 32.6 in |
| Maximum vertical stroke (Z) and speed | 400 mm, Speed 650 mm/s 15.7 in |
| Maximum MR axis stroke and speed | 360°, Speed 90°/s |
| Required power supply | single-phase, 180–240 V AC, 14 A at 180 V AC, 20 A at 230 V AC. |
| Required air pressure | 6 ± 1 bar, 150 litres/minute |
| Required floor space | 1200 x 1214 mm 47 x 48 in |
| Interface – serial RS232/422, M function or parallel I/O |
Options & accessories
| Options & accessories | |
| In-built lighting | |
| Integrated drying station with/without thermostat for temperature control | |
| ID-system with or without automatic scanning | |

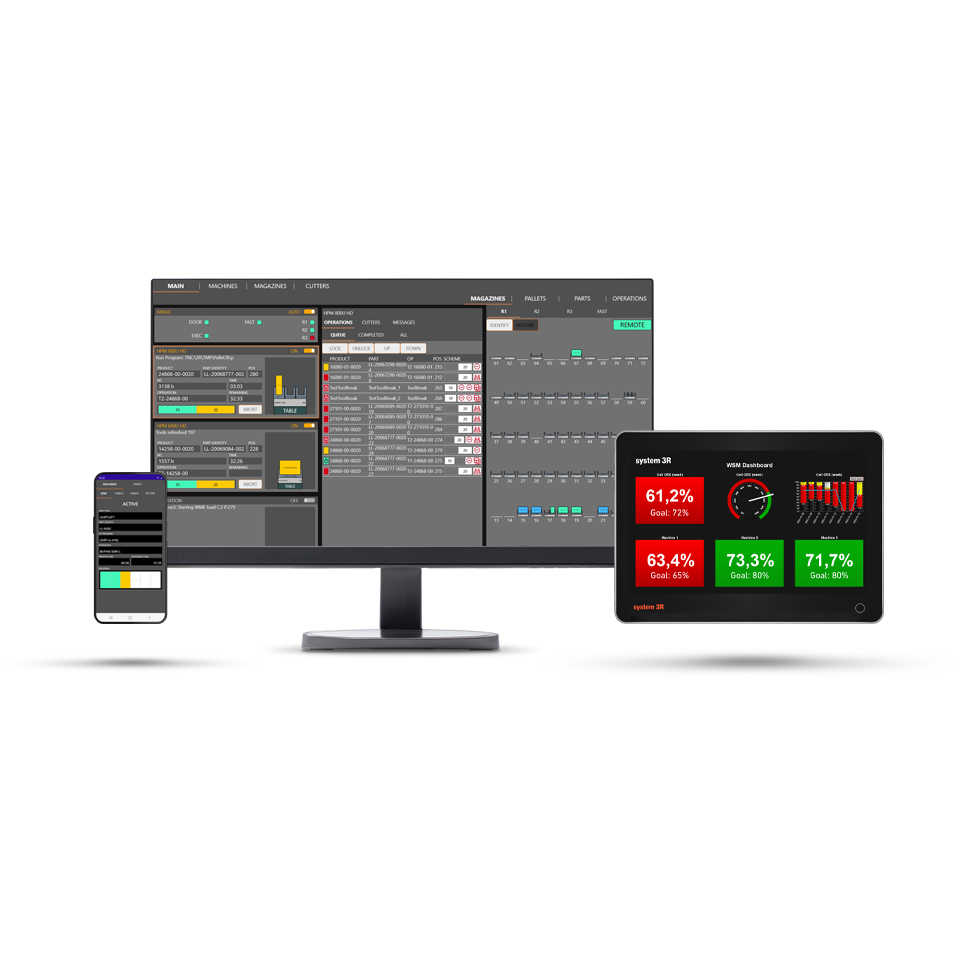

| Cell PC with WorkShopManager software | |
| Chip guard for Macro 54 & 70 | U-50167.55 |
| Code carrier | 3R-863.01-10, 3R-863.01-10M, 3R-863.25-10, 3R-863.30-10 or C690 800 |
